DJZQ series Point line meshing gear reducer

1. Overview of DJZQ series point-line meshing gear reducer

Applicable for the driving gear of mechanical equipment used in hoisting transportation, metallurgy, mine,

chemical industry and light industry.

①.Circumferential speed of gear wheel s16m/s;

②.Rotation speed of high shaft s1000r/min;

③.Operating ambient temperature:-40℃~+45℃；

④.Operable both forwards and backwards.

2. Assembly type

3. Shaft end type

The high-speed shaft end adopts a 1:10 taper shaft extension.

There are three type on low shaft edge:

(1) Cylinder shaft extension,linked by square(Z type)

(2) Gear coupling shaft end (C type)

(3) Floating disc coupling shaft end (F type)

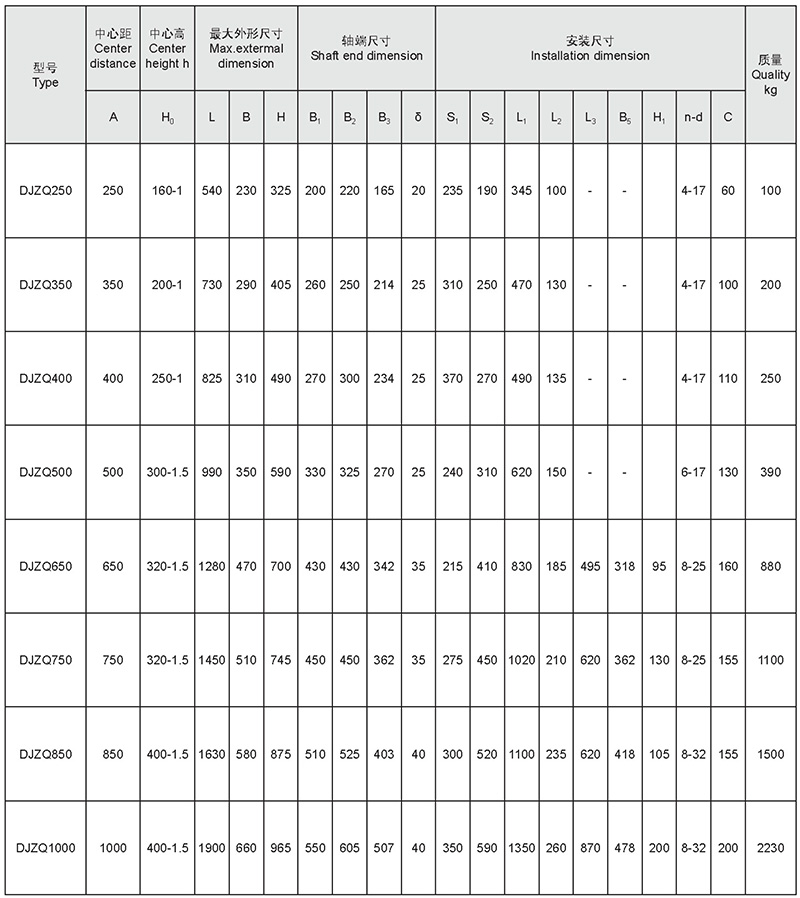

4. shape and installation dimensions

5. specifications
