Reducer for Mask Making Machine

Availability:
Quantity:

1. Overview of Reducer for mask making machine

ZLYJ series speed reducer is a gear transmission device with high precision hard tooth surface and thrust package designed for plastic and rubber screw extruders. The product design refers to the technical scope of JB/T8853-2001 \"Cylinder Gear Reducer\". Its characteristic is that the gear and shaft parts are made of high-strength alloy steel. The gears are processed by carburizing, quenching and gear grinding. The gear accuracy is GB10095-88, level 6. The tooth hardness is HRC54-62. A large-size thrust bearing is arranged at the front end of the hollow output shaft to withstand the axial thrust of the screw during operation. The whole machine has the characteristics of small size, high carrying capacity, stable transmission, low noise and high efficiency.


2. Scope of application

1. The speed of the high-speed shaft is not more than 1500 rpm.

2. The circumferential speed of the gear drive is not more than 20 m/s.

3. The working environment temperature is -40~45℃. If it is lower than 0℃, the lubricating oil should be preheated to above 0℃ before starting. This reducer can be used for positive and negativeIt runs in both directions, but some models have a one-way oil pump on the high-speed shaft. The default direction is: facing the output shaft, the output shaft rotates clockwise. If the direction changesPlease specify when ordering.


3. Model of reducer

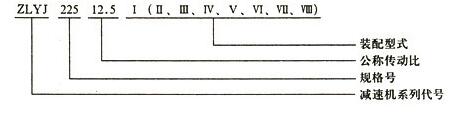

In the reducer model, it includes series code, specification number, nominal transmission ratio, and assembly type.

Markup example:

Markup example


Four, overall installation size

Overall installation size
