ZQA series Cylindrical Gear Reducer

Availability:
Quantity:

1. Overview of ZQA series cylindrical gear reducer

ZQA type reducer has improved and designed on the basis of ZQ tyoe,in order to enhance the load capacity and replace the old ZQ type.There are no change at contour,shaft end and installing size,but change materials of gear as following:the material of gear shaft is 42CrMo,big gear is ZG35CrMO,and the hardness of gear shaft is 291~323HB,big gear is 255~286HB.


1. Type

Cylindrical and medium hard gear reducer-20 model


Symbol sample

ZQ improved reducer's total center distance 500mm,nominal transmission ratio is 25,the third assembling

form,solid shaft extension,can marked:ZQA500-25--Z.


2. Transmission ratio

Actual transmission ratios of ZQA type are same except is=23.34(Because the deviation is less than 4% between

ZQ type's autual transmission ratio and nominal's),see table


3. Contour,shaft end and installing dimensions

The Contour,shaft end and installing dimensions of ZQA type are same to ZQ type


4. Load capacity

Get alloweld input power and duty M5 of output torgue of ZQA type 9 reducer intable,including continuous type 10.

Get max allowable radial load of ZQA type reducer in table.

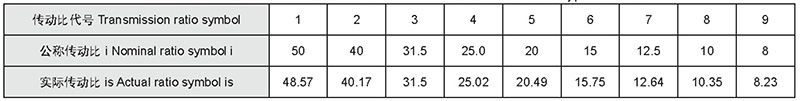

Cylindrical and medium hard gear reducer-20 parameters

Cylindrical and medium hard gear reducer-21 parameters

Cylindrical and medium hard gear reducer-22 parameters

Cylindrical and medium hard gear reducer-23 parameters

Cylindrical and medium hard gear reducer-24 parameters

Cylindrical and medium hard gear reducer-25 parameters

Cylindrical and medium hard gear reducer -26 parameters
