QJ-L type Vertical reducer

Availability:
Quantity:

1. Overview of QJ-L type Vertical reducer

Which are produced on basis of JB/T8905.3-1999,are mainly applied in craning,parts craning and Loading-

unloading bridge.Also they can be applied in other vertical installing machines.


Features

1、Casting iron box is applied in QJ-L type reducer and at side of pedestal the vertical reducer is installed;

2、Three stage transmission with speed ratio of 16-100;

3、Seven rinds of specs for QJ-L series and nominal central space of 140-400mm;

4、Qil bathing lubrication for small size machines and central oil spuring lubrication for machines over 280.

Other features are the same as Q type reducer.


Type

1、Structure type:three stage vertical reducers with pedestal.

2、Installing type:Three are six installing types for QJ-L type reducers which are showed below.

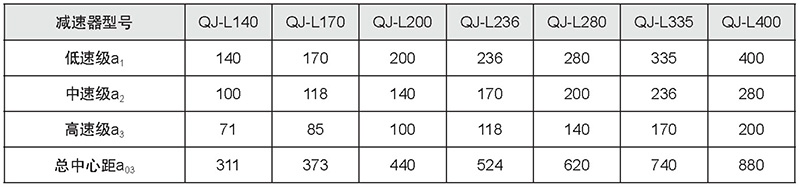

The main technical parameters

The main technical parameters

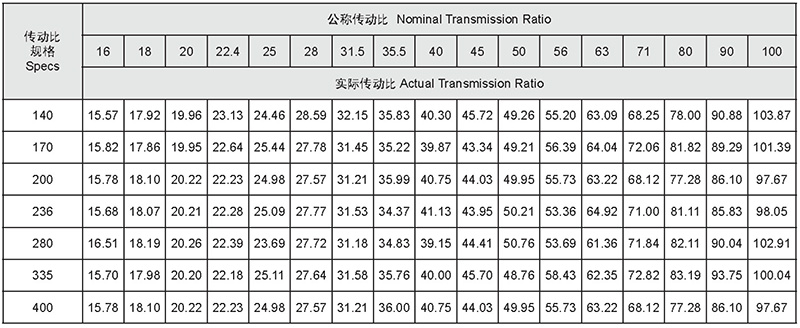

Transmission ratio table

Transmission ratio table


Overall installation size

Overall installation size


Specifications

Specifications
