1. Overview of NGW-L planetary gear reducer
The products are specificated as single stage NGw-L and double stage(L42-L122) They can be applied to metallurgy craning, tramsportation, chemical industry and light industry as general mechanism. the applicable condition are as follows
The maximum wheeling speed of high speed axle no more than 1500r/min Gear circle velocity no more than
15m/s.
The actuating temperature ranging form-40°Cto 45°C, preheat the lubricating oil before operation when below 0°C. Forward and reverse allowed.
2. Shape and installation dimensions

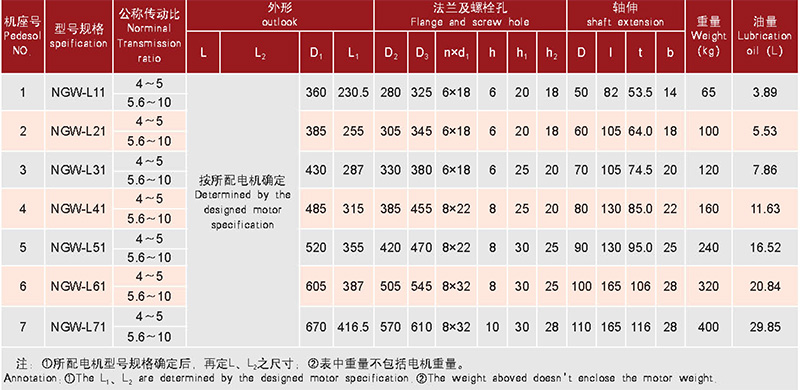

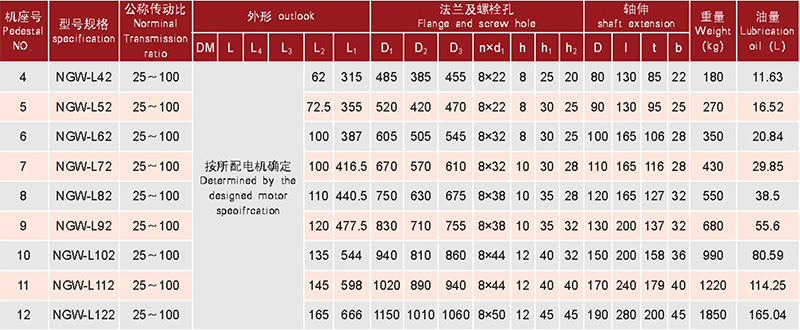

3. Specifications
1. Overview of NGW-L planetary gear reducer
The products are specificated as single stage NGw-L and double stage(L42-L122) They can be applied to metallurgy craning, tramsportation, chemical industry and light industry as general mechanism. the applicable condition are as follows
The maximum wheeling speed of high speed axle no more than 1500r/min Gear circle velocity no more than
15m/s.
The actuating temperature ranging form-40°Cto 45°C, preheat the lubricating oil before operation when below 0°C. Forward and reverse allowed.
2. Shape and installation dimensions
3. Specifications
