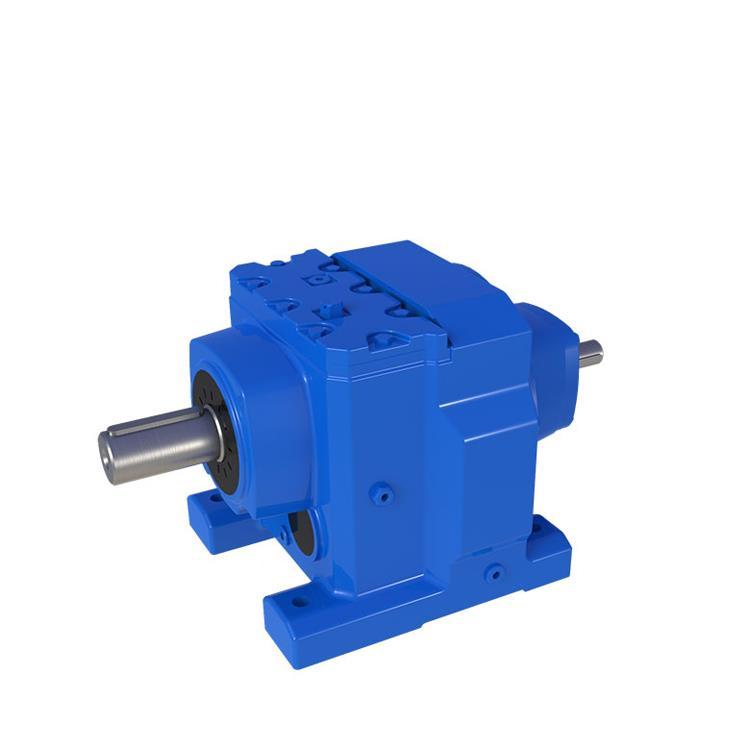

RXF Single Stage Flange Mounted Helical Gear Reducer


1. Product features of RXF single stage flange mounted helical gear reducer

Internationally advanced transmission devices, mechatronics geared motors have been widely used in various fields. Relying on strong design power, Taixinglong has introduced a brand-new design concept, based on the modular combination system, and has researched and developed modular combination geared motors.

The module combination allows the reducer to be combined with the following components:

1) Combined with AC squirrel cage motor;

2) Combination with AC squirrel cage flameproof motor;

3) Combine with brake motor;

4) Combine with unidirectional rotating motor;

5) Combine with servo motor;

6) A reducer with an input shaft connection without a motor can be provided, or a reducer with an open input end can be provided, which can be combined by customers at will.

R series helical gear reducer motor. The gears are made of high-quality alloy steel materials, surface hardened, and processed by high-precision equipment. The cast iron box body ensures rigidity and is precisely machined to ensure shape and position accuracy. It has the advantages of strong carrying capacity, long life, small size, large speed ratio, light weight, high efficiency and low noise.

R series gear reduction motors, two helical gear reduction boxes and motors can be combined into a multi-stage reduction. The output part can also be designed to lengthen the bearing section to form a vortex type reducer. Helical gear motors can be installed horizontally or flanged. In addition to independent applications, R series gear-free gear motors can be mounted with RF flangeless feet.

In addition to the independent application of R series helical gear motors, the RF non-foot flange mounted helical gear motors can also be used with P series parallel shaft helical gear motors.K series helical gear-bevel gear reducer motor, S series helical gear-spindle gear reducer motor form a multi-stage reducer motor to obtain particularly low output speed.

The motor is class F insulation, IP54 protection, 380 volts, 50 Hz three-phase asynchronous motor, suitable for the ambient temperature of -10℃~+40℃ in the weekly picture. It operates at an altitude of 1000m. If the above conditions are exceeded, please contact our company.

2. Shape and installation dimensions

Shape and installation dimensions

3. Specifications
