RM Extended Bearing Box Flange Mounted Helical Gear Reducer

Availability:
Quantity:

1. Product features of RM extended bearing box flange mounted helical gear reducer

Internationally advanced transmission devices, mechatronics geared motors have been widely used in various fields. Relying on strong design power, Taixinglong has introduced a brand-new design concept, based on the modular combination system, and has researched and developed modular combination geared motors.

The module combination allows the reducer to be combined with the following components:

1) Combined with AC squirrel cage motor;

2) Combination with AC squirrel cage flameproof motor;

3) Combine with brake motor;

4) Combine with unidirectional rotating motor;

5) Combine with servo motor;

6) A reducer with an input shaft connection without a motor can be provided, or a reducer with an open input end can be provided, which can be combined by customers at will.

R series helical gear reducer motor. The gears are made of high-quality alloy steel materials, surface hardened, and processed by high-precision equipment. The cast iron box body ensures rigidity and is precisely machined to ensure shape and position accuracy. With strong carrying capacity, long life, small size, speed ratioLarge, light weight, high efficiency, low noise and other superior performance.

R series gear reduction motors, two helical gear reduction boxes and motors can be combined into a multi-stage reduction. The output part can also be designed to lengthen the bearing section to form a vortex type reducer. Helical gear motors can be installed horizontally or flanged. R series de-gear reducer motors can be used independentlyIn addition, its RF flangeless mounting.

In addition to the independent application of R series helical gear motors, its RF non-foot flange mounted helical gear motors can also be used with P series parallel shaft helical gear motors, K series helical gear-bevel gear motors, and S series helical gears. -The wire gear worm gear motor is composed of a multi-stage gear motor to obtainVery low output speed.

The motor is class F insulation, IP54 protection, 380 volts, 50 Hz three-phase asynchronous motor, suitable for the ambient temperature of -10℃~+40℃. It operates at an altitude of 1000m. If the above conditions are exceeded, please contact our company.


2. Shape and installation dimensions

Shape and installation dimensions

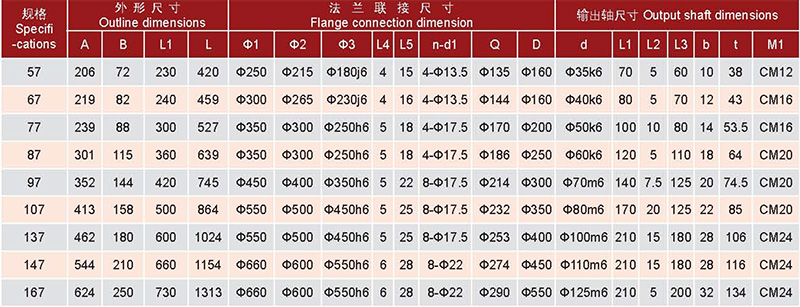

3. Specifications

Specifications
