1. Overview of DZQA series point-line meshing gear reducer
Applicable for the driving gear of mechanical equipment used in hoisting transportation, metallurgy, mine,
chemical industry and light industry.
①.Circumferential speed of gear wheel s16m/s;
②.Rotation speed of high shaft s1000r/min;
③.Operating ambient temperature:-40℃~+45℃;
④.Operable both forwards and backwards.
2. Assembly type

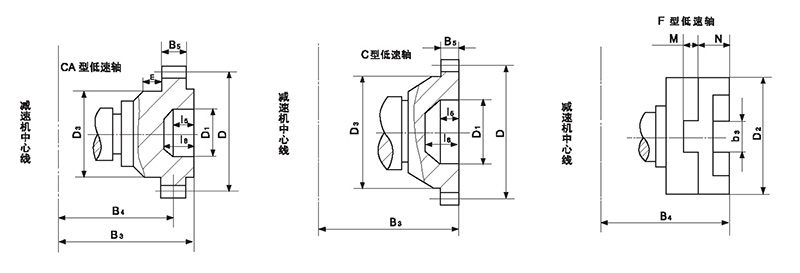

3. Shaft end type
The high-speed shaft end adopts a 1:10 taper shaft extension.
There are three type on low shaft edge:
(1) Cylinder shaft extension,linked by square(Z type)
(2) Gear coupling shaft end (C type)
(3) Floating disc coupling shaft end (F type)

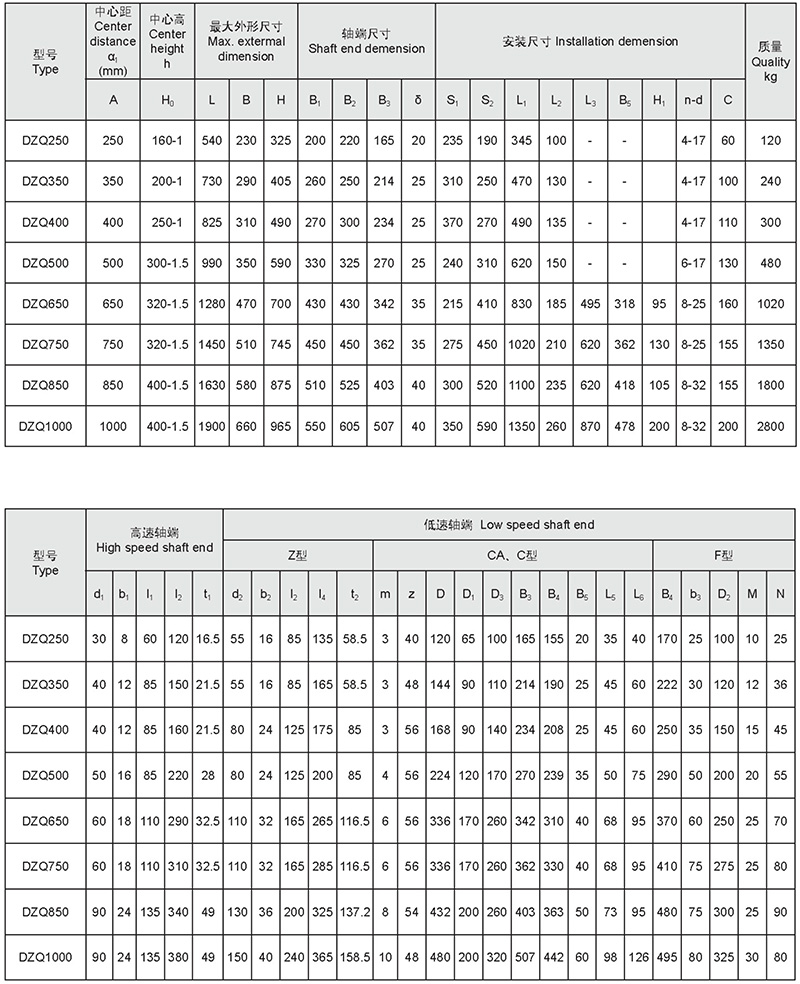

4. shape and installation dimensions
5. specifications
