ZQ/JZQ Cylindrical Gear Reducer

1. High transmission rate: single-level greater than 96.5%, dual-level greater than 93%, third-level greater than 90%.
2. Stable operation and low noise.
3. Small size, light weight, long service life and high carrying capacity.
4. Easy to disassemble and install.

Email: txljsj@aliyun.com
Mobile: +8615605162023
Tel: +86-523-8799 6188/8799 6888
Availability:
Quantity:
  • Taixinglong

ZQ / ZQH / ZQA series cylindrical gear reducer, also called cylindrical gearbox or cylindrical speed reducer or cylindrical reducer

ZQ cylindrical gear reducer/speed reducer is a three-stage transmission of involute cylindrical gear reducer. It is mainly used for deceleration drive of various mechanical equipment such as mining, metallurgy, cement, construction, chemical industry, light industry,etc. It is suitable for occasions where the workplace is limited The vertical installation is adopted by the structure, the high-speed spindle speed does not exceed 1500r/min, the working environment is + 40 ° C and 40 °C-, and it can run in positive and negative.


Main features

1. High transmission rate: single-level greater than 96.5%, dual-level greater than 93%, third-level greater than 90%.

2. Stable operation and low noise.

3. Small size, light weight, long service life and high carrying capacity.

4. Easy to disassemble and install.


Main application industries

Cylindrical gear reducer is widely used in metallurgical equipment, mining equipment,automation equipment, food machinery, packaging equipment, tobacco equipment, etc.


Technical Data

Gear hardnessHeat treatmentOil seal brand

Shell material

HT150-250

Gear material

45#

Gear hardness

HB217-255

Input/output shaft material

45#

Input/output shaft hardness

HB217-255

Gear machining accuracy level

Grade 8-9

Lubricant

GB L-CKC150

Modulation processing

Modulation processing

Effectiveness

94%〜96%(depending on the  transmission stage)

Noise (maximum)

90decibels

Vibration

≤20microns

Error

≤20Arcmin

Oil seal brand

TTO -Taiwan or other brand requirements


ZQ(JZQ) reducer Type

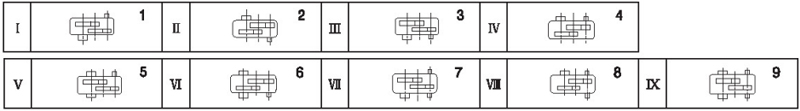

ZQ-type gear reducer has nine assemble-types, details refer to Fig 1, input shaft extension is coniform, end of out shaft installed with cylindrical model shaft extension(type Z), gear type(Type CA)and Euclidean (Slider) coupling (Type F).


Types of ZQ ZQH ZQA series

Type

Symbol sample

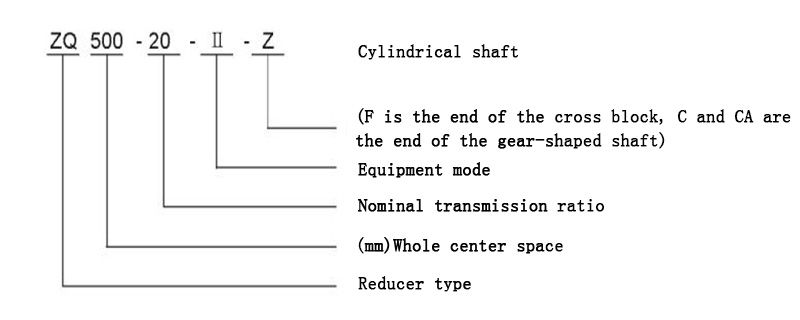

Type ZQ gear reducer the total center distance is 500mm, speed ratio i =40.17, ll assemble type, output shaft is type CA gear, mark with: gear reducer ZQ 500-40-II-CA


Main tech data

Table 1 Type ZQ gear reducer ratio

Center distance of gear reducer 250 350 400 500 650 750 850 1000
High speed 100
150
150 200 250 300 350 400
Low speed 150 200 250 300 400 450
500 600


Table 2 Type ZQ gear reducer ratio

No of tran smission ratio 1 2 3 4 5 6 7 8 9

Nominal transmission ratio

50 40 31.5 25 20 16 12.5 10 8
Actual ratio symbol is  48.57 40.17 31.50 23.34 20.49 15.75 12.64 10.35 8.23


Outline shaft end and installation dimension

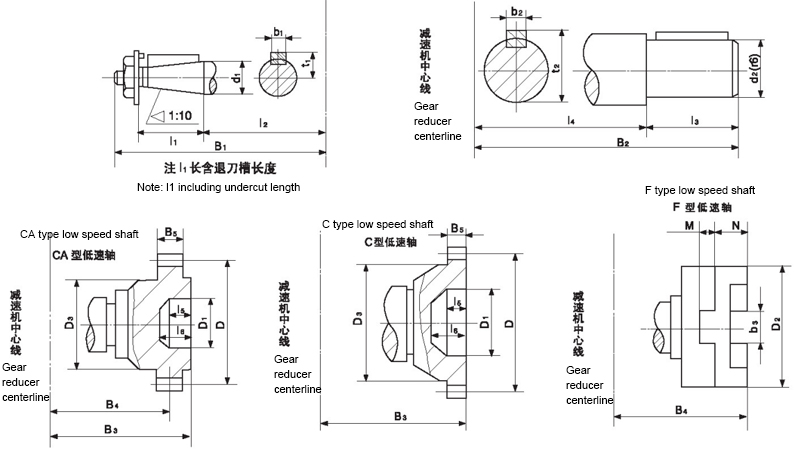

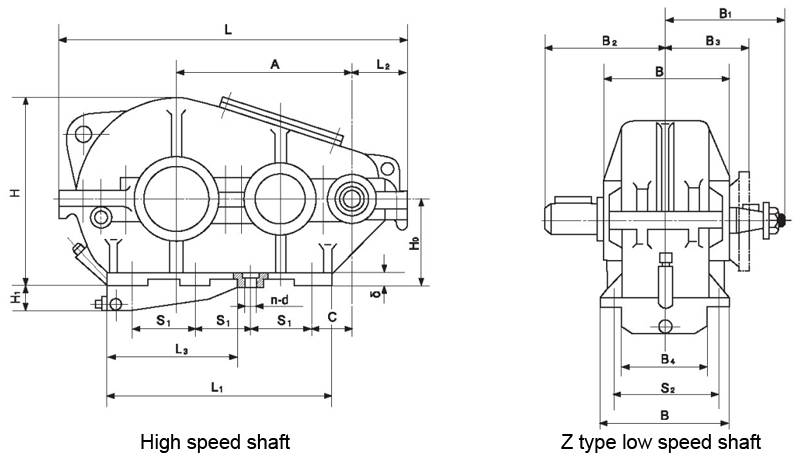

Outline, shaft extension and installation dimension of type ZQ gear reducer refers

ZQ type reducer appearance, shaft end and installation size 1

ZQ type reducer appearance, shaft end and installation size 2

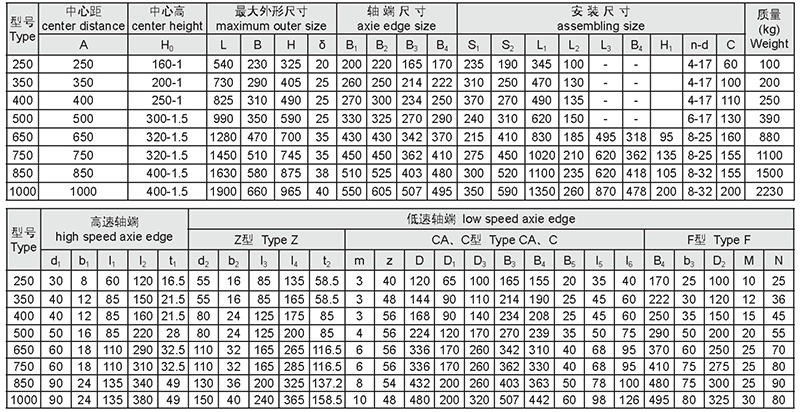

Table 3 Outline, shaft end and installation dimension of Type ZQ gear reducer

ZQ-gear-reducer


Manufacturing strength

NILES ZE400 Gear Grinding machines

NILES ZE400 Gear Grinding machines

Horizontal Machining Center imported from Korea

Horizontal Machining Center imported from Korea

YK7380 Digital Shaped Gear Grinding Machines

YK7380 Digital Shaped Gear Grinding Machines

workshop

workshop

Metalworking Workshop

Metalworking Workshop

Heat-treatment-plant

Heat treatment plant

Slant bed type CNC lathes

Slant bed type CNC lathes

CNC hob sharpening grinding machine

CNC hob sharpening grinding machine

Circular grinding machine

Circular grinding machine


QJ series cylindrical gear speed reducer (cylindrical gearbox or cylindrical reducer) is a medium-hard tooth surface gear speed reducer, which is mainly used for the reduction drive of various mechanical equipment such as mining, metallurgy, cement, construction, chemical industry, light industry and so on.

Mainly divided into: QJR-D, QJS-D, QJRS-D base type reducer and QJR, QJS, QJRS three-point reducer.

The driving shaft speed does not exceed 1500 r/min, the working environment is +40°C and 40°C-, and it can run in positive or negative directions.



Main features:

1. The gears are made of 42CrMo and 35CrMo after quenching and tempering, and then made into gear shafts and gears.

2. High transmission rate: single-stage greater than 96.5%, double-stage greater than 93%, and three-stage greater than 90%.

2. Stable operation and low noise.

3. Small size, light weight, long service life and strong carrying capacity.

4. Easy to disassemble and install.


Product description

Features

Stable operation, low noise,

Small size and light weight,

Long service life, strong carrying capacity,

Cost saving, low maintenance cost,

Easy to disassemble and install,

High efficiency, large torque,

It is cost-effective and can be widely used in industrial production.

Main application industries

Cylindrical gear speed reducers are widely used

Metallurgical equipment,

Mining Equipment,

Automation equipment,

Food Machinery,

Construction engineering,

Port ships,

Chemical, light industry and other industries


Technical Data

Shell material

base type adopts HT250,three-point type adopts Q235 steel plate welding

Shell hardness


Gear shaft material

42CrMo

Gear hardness

HB291-323

Gear material

35CrMo

Gear hardness

HB263-297

Output shaft material

45Cr

Output shaft hardness

HB241-269

Gear machining accuracy

7-8 level

Lubricant

GB L-CKC150-220,shell pressure resistance 150-220

Heat treatment

Modulation processing

Effectiveness

94%〜96% (depending on the transmission stage)

Noise (maximum)

90 decibels

Temperature rise (maximum)

40℃

Temperature rise (oil) (maximum)

50℃

Vibration

≤20 microns

Error

≤20Arcmin

Oil seal brand

TTO - Taiwan or other brand requirements

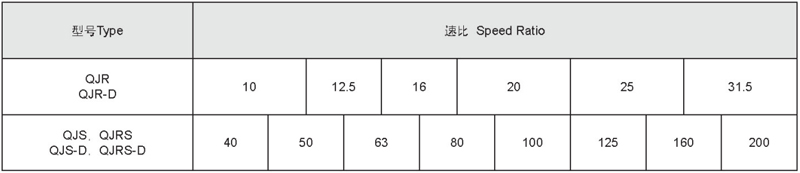

Type and gear ratio of QJ series


Type and gear ratio of QJ series






Main production equipment to guarantee quality!


Processing center, imported high precision equipment

The horizontal machining center

The horizontal machining center imported from Korea adopts fanuc31i system from Japan. With APC and ATC, it can realize the functions of boring, milling, drilling, tapping and automatic detection with high precision and high efficiency.

horizontal machining center



VMC 1100 vertical machining center

VMC 1100 vertical machining center adopts the Japanese fan oimd operating system, which can realize the functions of three-axis three linkage and 24 cutter automatic exchange, and has the functions of boring, milling, reaming, drilling, tapping and automatic chip removal, with high precision and high efficiency, and the accuracy is above grade 6.

 VMC 1100 vertical machining center



Gear grinding and hobbing equipment workshop

Niles gear grinding machine imported from Germany

Niles gear grinding machine imported from Germany is suitable for gear processing with high quality and high precision. The quality of external teeth can reach grade 3, and the quality of internal teeth can reach grade 4 (according to German dn3962 standard). The structure is compact, high toughness and shock absorption cast iron. The Siemens 840D control system is adopted. It is ergonomically designed, and the machine tool has good accessibility. The operator's standing height is on the floor of the workshop.

Niles gear grinding machine imported from Germany



Yk7380 CNC high precision gear grinding machine

Yk7380 CNC high precision gear grinding machine has the advantages of simple operation, high precision, high efficiency, high reliability and stability, and high degree of automation. The machine tool is full closed-loop control, with a wide variety of processing objects and flexible gear profile and tooth direction modification.

Yk7380 CNC high precision gear grinding machine





Hardened teeth, metalworking, heat treatment, box equipment workshop

Production department, equipment department, metalworking workshop, box workshop, heat treatment workshop, assembly workshop, paint workshop, physical and chemical room, measurement room, testing room, with 186 sets of domestic first-class production and testing equipment, continuously introducing foreign advanced technology, professional research and development, production of various types of reducer.

Hardened teeth, metalworking, heat treatment, box equipment workshop





Testing equipment

The company has precision testing equipment to inspect, measure and test reducer products. Effective control, strict control, provide quality products!

testing equipment
